Overview

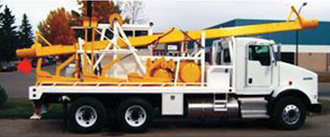

Our laydown machines are a versatile safe and one of the quickest ways to handle almost any size of casing. They can be mounted on a truck, trailer or skid mounted, as well we can tandem your pipehandling capabilities with a hydraulic system to operate a power tong with the same unit. Insight Manufacturing is a leader in building
and commissioning pickup and laydown machines anywhere on the globe.
Deck
- 20 feet long by 8 feet 6 inches wide
- 4" by 6" heavy wall main frame
- 4" wide flange crossmembers
- 1/4" checker plate deck
- 3/4" plate rear bumper
- 1" anchor plate for winch mount
- Super Duty Outriggers 6X6 heavy wall metal with lock pin hole for up and down lock
- Center mount for trough & anchor pole
- 2 underbody mount tool boxes, 36" wide by 24" high by 24" deep
- 24 volt lighting (if applicable to truck requirements)
- Walk way on cab side with steps
Cab
- 63" long by 34" wide by 60" high
- Upholstered head liner with interior light
- Reclining & sliding high back seat
- Exterior work lights(5) two rear facing one to be spot lights
- Electric front windsheild wipers
- All glass is safety glass, with slider on right & left
- Roof mounted air conditioning unit (*Optional*)
Winches
- Lantec M-50 (big line) with 200' 7/8 cable with eyelet
- Lantec M-30 (fast line) with 280' 5/8 cable with eyelet
- Pullmaster M/50 (big line) with 200' 7/8 cable with eyelet
- Pullmaster M-30 (fast line) with 280' 5/8 cable with eyelet
- Gearmatic M/50 (big line) with 200' 7/8 cable with eyelet
- Gearmatic M-30 (fast line) with 280' 5/8 cable with eyelet
Kickers
- Three kickers
- One piece preformed
- Phasing cylinders
- Spare set of cylinders
Anchor Pole
- Engineered Pole
- 26 feet long
- Support leg with 4 no-slip pads
- Deflector flag
- Double ring for top sheave
Self Powered Option (DESERT UNIT)
- Deutz BF6L-914C 179HP Tier III
- Positive air shut down
- Spark arrester
- Self contained electrical system with 8D battery
- 45 gallon fuel tank
- All engine controls and gauges are in the cab
Hydraulics
- Greasen valve bank, manual lever operation
- Remote cab mounted adjustable relief for large winch
- 2 way diverter valve from kickers to outriggers
- 3" suction with screen in hydraulic tank
- 250 gallon hydraulic tank with clean out lid
- Dual hose reels with 60 feet of hose
- Vane style pump mounted to Duetz engine
- High capacity oil cooler with electric fan
Trough
- 16"- 24" by 32 feet by 3/8 wall
- With three 7/8 & three 5/8 sheaves
- Engineered for safety
Paint
- Endura plastic paint- Painted to customers colors
Other Items
- Will include operation and safety manual
